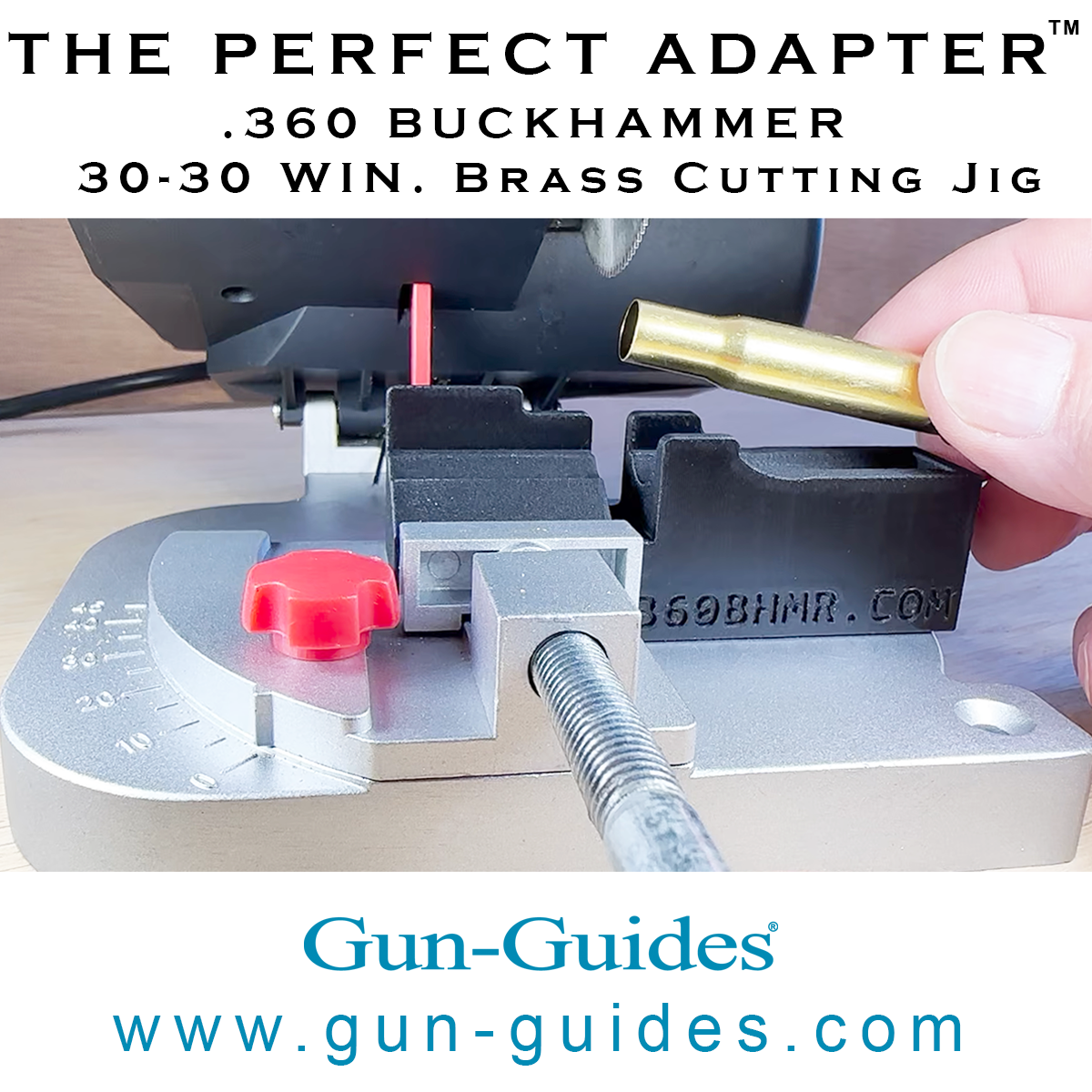

Perfect Adapter™ .360 Buckhammer (BHMR)

The Perfect Adapter™ for .360 BHMR was purpose-built to convert Winchester 30-30 brass into the new Remington .360 Buckhammer cartridge case.

When securely installed into the vice jaws (included) with the Drill Master 2" Mini Chop Saw, this jig will consistently perform high speed 90º miter cuts at incredible accuracy at 1.82” (+ - .01” with primer removed). Cases will be ready for chamfer / deburring, sizing, and trimming to your desired length (SAAMI SPEC @ 1.80" -.20").

Watch our one minute demo video at:https://www.youtube.com/watch?v=lPNTIbWkUR0

• Designed specifically for the contour of the rimmed and bottle necked 30-30 Winchester cartridge case.
• Made from the highest quality Carbon Fiber PLA material.
• Integrated Saw Stop Tab prevents the blade from touching the jig.
• Repurpose your 30-30 Winchester Brass (available since 1895).
• Saves $$ and concerns about obtaining factory Remington brass.
• Non-Marring, will not scratch your brass.
• Finally, there’s a standard .358 caliber straight walled cartridge for rifles and revolvers!
• Made in the USA!
• Sold exclusively at: www.gun-guides.com
• TIP: If you would like to add .016-ish inches to the brass length, simply insert a small section of a standard business card as shown in the above images.

UPC: 306659851940

BLOG about ALL things .360 BHMR @ www.360bhmr.com

SAFETY FIRST: ALWAYS WEAR SAFETY GLASSES.

Do not operate power tools while drinking, smoking, or distracted.

CHOP SAW:

Drill MasterItem 62136

UPC: 792363621366

Harbor Freight:$34.99 (9-1-23)

2” Bench Top Cut-Off Saw. 120 vac

Drill Master Item 62136

https://www.harborfreight.com/2-in-mini-benchtop-cut-off-saw-62136.html

AMAZON:$53.96 (9-1-23)

https://www.amazon.com/bench-top-cut-off-saw-120/dp/B07X1D1V9R

OUR 360 BHMR BENCH: (The following items are not included with the above Jig)

1. Inspect ALL of your clean and tumbled (and preferably annealed) 30-30 Winchester Brass.

2. With your safety glasses on, Cut brass with the Perfect Adapter™ 360 BHMR JIG.

3. A quick once over with a chamfer / de-burring tool.

4. Lube cases. (VERY important)

5. REDDING # 80946 SERIES B 360 BUCKHAMMER DIE 3 DIE SET with #2 Shellholder or Toolhead in station # 1 (Decap / Full length size and install Large Rifle Magnum Primer (or prime the case prior to #7 below). Station # 2 (Expanding Die). 3 Die sets are also available from LEE: # 92034.

6. TRIM: To your desired length. We use the LEE DELUXE TRIMMER # 90437 with the new LEE 360 BUCKHAMMER Quick Trim Die # 92039. Set at 1.80" Installed in the good old RCBS RockChucker with Hornady Lock N Load bushings.

7. Optional Precision Expander Mandrel, (a nice quality control step using the RCBS RockChucer ). Lube inside the neck with REDDING IMPERIAL DRY NECK LUBE PLUS APPLICATION MEDIA. SINCLAIR/BROWNELL'S 35-50 Caliber Expanding Die Body # 749008843 and 35 CAL Expander Mandrel (E35) #749002084.

8. Charge the case with powder. ALWAYS WORK UP FROM A SAFE STARTING LOAD!

9. Seat bullet to your desired length and crimp. We prefer to use the 360 BUCKHAMMER LEE Factory Crimp Die # 92035. Nice last touch with a collet die for quality control.
