MAY 23rd, 2023 - Introducing the NEW:
OLDER SAVAGE Model 24s that have the side action lever may need some minor fitting to secure the mount(s).
FAQ: Can I adjust the mounts to a custom fit?
YES: Here's a few suggestions.
Over the many years of production on this rimfire rifle / shotgun , there has been a few tolerance changes in the groove channels.
However, theres a simple solution to custom fit our adapters to your rifle.
The goal here is to allow the two screws to do the final clamping action on the mounts to secure the mount to the groove channels.
Replace the screws and tighten to around 20 ~ 25 INCH POUNDS. (finger snug by inserting the long end of the wrench to avoid extra leverage).

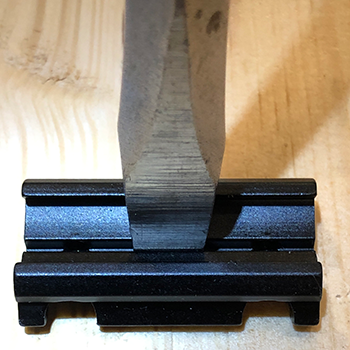

IF TOO WIDE/ LARGE where they will slide on to the rail and not tighten down securely. We will need to tighten / decrease the gap distance on the underside of the mount. Place each mount on a hard surface as shown below. Use a small plastic hammer or use a small non-marring piece of wood and slightest amount necessary GENTLY tap downward to tighten the clamp (as shown with the white arrow below) .Test fit on the rifle... Repeat if needed. Replace the screws and tighten to around 15 or less INCH POUNDS. (finger snug by inserting the long end of the wrench to avoid extra leverage). Using a bench vise seems like a good idea - but its nearly impossible to squeeze together the mount a "pinch" without needing to spread it back out as described above or actually snapping the mount in 2 pieces.
INFORMATION & INSTRUCTIONS.PDF
FAQ: Torque setting for the new Perfect Adapter® II screws?
We highly recommend using an INCH POUND torque wrench set at 20 ~ 25 inch pounds.
Check the mounts regularly to ensure that they are secure.

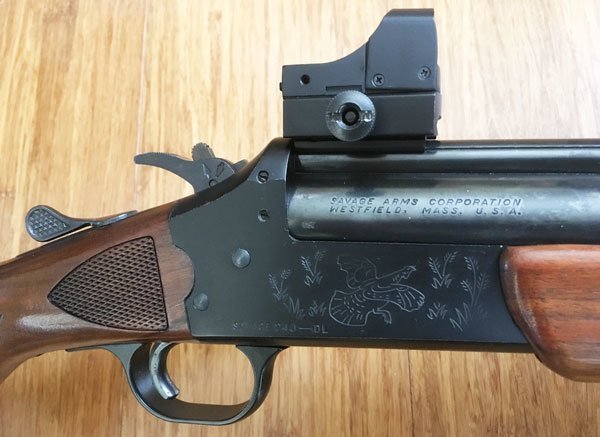

FAQ: What rings are on the scope images shown above?
We have used each of these with great success:
Weaver Grand Slam Weaver-Style Rings Lever Lock Rings
Warne Maxima Quick-Detachable Weaver-Style Rings
Leupold QRW Quick-Release Weaver-Style Rings
