DOES NOT INCLUDE RED DOT OPTICS SHOWN ABOVE (FastFire or UTG red dot optics).
Perfect for fast action hunting or plinking!
Mounts to 1964 ~ 1981 Top Ejecting Win. Model 94s with two small plug screws on the left side of the receiver.
Also fits 94’s and Angle Eject models (starting in 1983) that have been tapped for two #6-48 screws with .405” (center to center). Winchester RANGER models (top eject), normally DO NOT have these two plug screws installed from the factory.
LOOK UP YOUR SERIAL NUMBER RANGE BELOW
Winchester 94 XTR Series Big Bore and Model 1886 rifles have larger receivers.
HOWEVER, we have received emails and feedback from very happy customers that modified our mount to custom fit their XTRs and 86's. Sorry, we cannot offer a refund once you've altered the mount. Here's a nice Model 1886 Winchester saddle ring carbine in 45-70 from Canada.
Standard low profile 3 rail Picatinny rail.

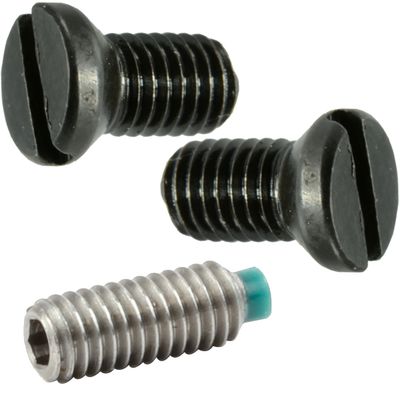

Includes mount, (2) high quality black oxide steel slotted oval head screws and a stainless steel elevation set screw with soft tip (includes 1/16" Allen wrench).
Made from one solid billet of lightweight aircraft aluminum.
Matt black anodized finish.
WINCHESTER MODEL 1994 SERIAL NUMBER RANGES:
RECORDS AT THE FACTORY, AND IN SOME YEARS, ESTIMATES INDICATE THE FOLLOWING SERIAL NUMBERS WERE ASSIGNED TO GUNS AT THE END OF THE CALENDAR YEAR.
